WizFi360-EVB-Pico
WizFi360-EVB-Pico
- Referência: WizFi360-EVB-Pico
- Disponibilidade: Em Stock

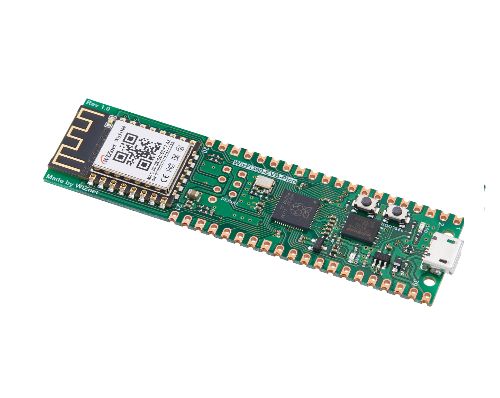

O WzFi360-EVB-Pico é baseado no Raspberry Pi RP2040 e inclui conectividade WiFi usando o módulo WizFi360. É pino compatível com a placa Raspberry Pi Pico e pode ser usado no desenvolvimento de solucões IoT
– RP2040 microcontroller with 2MByte Flash
– RP2040 microcontroller with 2MByte Flash
– Dual-core cortex M0+ at up to 133MHz
– 264kByte multi-bank high performance SRAM
– External Quad-SPI Flash with eXecute In Place (XIP)
– High performance full-crossbar bus fabric
– 30 multi-function General Purpose IO (4 can be used for ADC)
– 1.8-3.3V IO Voltage (NOTE. Pico IO voltage is fixed at 3.3V)
– 12-bit 500ksps Analogue to Digital Converter (ADC)
– Various digital peripherals
– 2 × UART, 2 × I2C, 2 × SPI, 16 × PWM channels
– 1 × Timer with 4 alarms, 1 × Real Time Counter
– 2 × Programmable IO (PIO) blocks, 8 state machines total
– Flexible, user-programmable high-speed IO
– Can emulate interfaces such as SD Card and VGA
– Includes WizFi360-PA
– WiFi 2.4G, 802.11 b/g/n
– Support Station / SoftAP / SoftAP+Station operation modes
– Support “Data pass-through” and “AT command data transfer” mode
– Support serial AT command configuration
– Support TCP Server / TCP Client / UDP operating mode
– Support configuration of operating channel 0 ~ 13
– Support auto 20MHz / 40MHz bandwidth
– Support WPA_PSK / WPA2_PSK encryption
– Support built-in unique MAC address and user configurable
– Industrial grade (operating temperature range: -40 ° C ~ 85 ° C)
– CE, FCC certification
– Includes 16M-bit Flash Memory
– Micro-USB B port for power and data (and for reprogramming the Flash)
– 40 pin 21×51 ‘DIP’ style 1mm thick PCB with 0.1″ through-hole pins also with edge castellations
– 3-pin ARM Serial Wire Debug (SWD) port
– Built-in LDO
9.51€
IVA incluído
